| Nom De Marque: | SUCLAB |
| Numéro De Modèle: | HZJ870D |
| Nombre De Pièces: | 2 PCS |
| Conditions De Paiement: | T/T |
| Capacité à Fournir: | 5000 PCS |

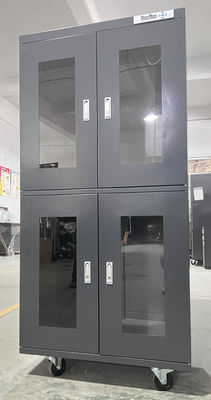

| Product Name | 870L intelligent nitrogen cabinet |
| Product model | HZJ870D |
| Inner dimensions | W898*D572*H1698mm |
| External dimensions | W900*D600*H1890mm (height including 4-inch casters) |
| Volume | 870L |
| Net weight | 106 Kg |
| Humidity control range | 1%-60%RH |
| Accuracy Humidity | ±3%RH |
| Accuracy Temperature | ±1℃ |
| Equipment power | Average power ≤8W |
| Bottom structure | Bottom-mounted 360°rotating casters, two of which have brake function, convenient for movement and fixation |
| Load-bearing shelves | High-strength load-bearing shelves, the height of the shelves can be adjusted up and down, and equipped with fixing devices to prevent the partitions from moving forward and backward, left and right, and up and down, making it safer and more convenient to store items |
| Cabinet structure | Adopt 1.0mm cold-rolled steel plate, partially reinforced by 3.0mm, and the surface is beige orange paint |
| Cabinet door | Square door design, door inlaid with high-strength explosion-proof tempered glass, safe hidden pressurized handle lock integrated design |
| Control system | adopts multi-point gas supply system, nitrogen rushes into the box through more than 30 small holes, and the nitrogen in the box is evenly distributed, avoiding the dead point and dead angle phenomenon caused by ordinary single-point gas supply. It has an intelligent control system, which saves energy and extends the service life of the product. |
| Standard functions |
1. Microcomputer LED high-definition display control panel, temperature and humidity sensor uses Swiss imported SENSIRION, temperature and humidity independent display, no need to switch, digital display is accurate, service life 2. Humidity setting, with memory function, no need to reset after power failure 3. With automatic fault identification and tracking function 4. Digital display drawer design, convenient for calibration and maintenance |
| Optional functions |
1. Humidity over-standard alarm function 2. Temperature and humidity data reading function (USB/RJ45) 3. Network centralized monitoring function 4. Door opening alarm 5. Door opening light 6. Lighted warehouse position guidance function 7. Moisture-proof movement can be installed 8. Add digital display sleep function 9. Display calibration expiration reminder |
| Application range | IC, BGA, precision electronic components, special chemicals, semiconductor devices, optical electronic devices, printed circuit boards, optical films and lenses, precision instruments and meters, etc. |
